DS-2-150

ThermaSol 10kW DS-150 Day Spa Series Steam Bath Generator DS-150

Voltage & Phase
Room Option

Estimated to ship:

Call or text anytime 1-844-HYDRO-33 (1-844-493-7633)

LOWEST PRICE GUARANTEE

The ThermaSol DS-150 is a 10kW steam shower generator that is designed for day spa and hotel steam rooms and can service up to 4 steam shower enclosures with combined dimensions of up to 600 adjusted cubic feet (ACF).

The ThermaSol DS-150 is designed for day spas and hotels and can service up to 4 steam shower enclosures with combined dimensions of up to 600 adjusted cubic feet (ACF).

The high-performance, low-maintenance DS-150 generator is designed to meet the needs of professional day spas and resorts. The unit is constructed of durable stainless-steel inside and out, resulting in years of dependable operation. The generator features a split-tank design which helps ensure the longevity of the unit.

The included steam distribution system module allows you to deliver steam to each room independently or simultaneously.

FEATURES

  • Industrial grade, serviceable heating element
  • Non-pressurized vessel
  • Operates two, three, or four steam room environments
  • Integral drain pan with 3/4" NPT fitting
  • Stainless steel design inside and out
  • Durable electronic components
  • Can be installed up to 50 feet from the room
  • Hardware Kit provided
  • Large capacity tank size
  • CSA/CUL listed
  • ASME safety valve

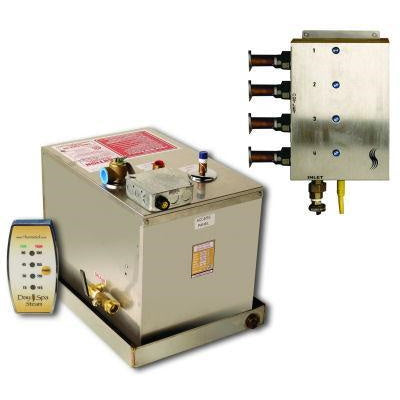

PACKAGE INCLUDES
  • 1 Generator
  • In-Room Controls (2,3, or 4)
  • Commercial Steamheads (2,3, or 4)
  • Installation manual
  • Limited Warranty
Model DS-150
Minimum Adjusted Cubic Feet 90
Maximum Adjusted Cubic Feet 600
Kilowatt Rating (KW) 10 KW
Shipping Weight 46 lbs
Water Supply Connection 3/8" NPT
Generator Steam Line Connection 1/2" NPT
Steam Head Connection 1/2" NPT
Safety Relief Valve Connection 3/4" NPT
Safety Relief Valve PSIG 15 PSIG
Control "Rough In" Cut Out 1-1/16"
Generator Control Connection 6 Pin, Snap-In Connector
Generator Control Cable 50', 6 Conductor, 22 AWG, Shielded Cable
Width 18-3/4"
Depth 13-3/4"
Height 16"
Number of Rooms 2, 3, or 4 (DS-2-150=2 rooms, DS-3-150=3 rooms, DS-4-150=4 rooms)
See Installation and Operation Manual
