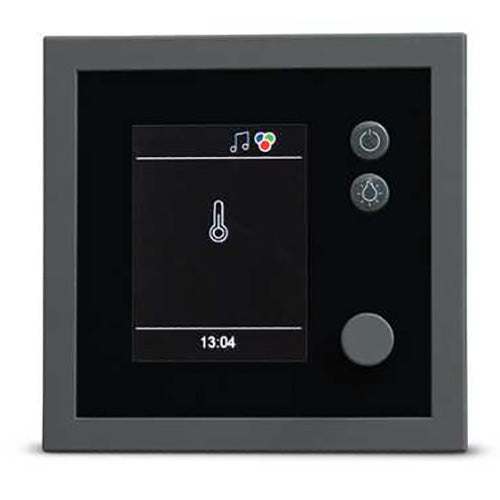

EOS EmoTec D Digital Sauna Control Unit

The attractive, high-class EOS EmoTec D is an advanced multi-function digital sauna control combining smart features and cutting-edge engineering for seamless and innovative operation.

Power Box sold separately.

The EOS EmoTec D is a premium all-in-one sauna control unit featuring a contemporary look and intuitive sauna functions for home and commercial use.

Command your sauna's climate through a TFT display that provides high-contrast, vibrant color for superior image quality. Navigate the easy-to-read interface for the complete array of sauna functions, all operable through two buttons and simple-to-use jog-dial. Adjust the temperature up to 194 °F for powerfully relieving sauna sessions, safely monitored through the digital sensor system with a built-in temperature limiter. Sauna bathers can additionally control cabin lighting, ventilation fans, and vaporizers with additional outputs for a customizable user experience.

The two-tone display panel smoothly integrates into any modern sauna space with configurable wall-mount or recessed installation. Optional pin code protection can lock the display to secure your sauna, while the efficient sleep mode conserves energy during use. With multilanguage menu capability and future on-site firmware updates possible, the EOS EmoTec D ensures convenient and reliable long-lasting use.

Supported by a 2-year warranty, the EOS EmoTec D is a simplistic, modern and innovative sauna control able to reliably operate all major sauna functions.

FEATURES

• Easy to use 3.5" TFT Color display for a modern look that can be wall-mounted or recessed.
• Quick access layout for intuitive yet simple operation through a jog-dial with two physical buttons.
• Interactive user interface with icons and clear text for easy navigation supporting 19 different languages.
• Digital temperature adjustment ranging from 86° - 194° F (30 - 90°C)
• Additional outputs available for control of third-party equipment such as lighting, ventilation fans and vaporizers for full cabin operation.
• Optional pin code protection for added security, a sleep mode for energy efficiency, and 4 custom user profiles.
• Firmware can be updated on site with a micro-SD card for long-lasting reliability.
• Power Box sold separately.
• Designed, engineered and built in Germany.
• Dimensions: 5.1"W (130 cm) x 1"D (2.5 cm) x 5"H (12.7 cm)
• Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)

INCLUDES

• EmoTec D Control Panel
• Wall-Mount & Recessed Housing for Control
• Temperature Sensor
• 5m Connecting Cable with RJ10 Plug
• 5m Connecting Cable with RJ14 & RJ10 Modular Plug
• Circuit Board
• Control Panel Removal Tool
• 4 Cable Glands
• 4 Wood Screws 4 x 25 mm
• 2 Screws 4 x 40 mm
• Installation and Operation Manual
• 2-Year Limited Warranty (Consumer Use) and 2-Year Limited Warranty (Commercial Use)
