EOS Invisio Midi 240/2 Concealed Under-Bench Sauna Heater, 240V/2PH, up to 9kW

Name: EOS Invisio Midi 240/2 Concealed Under-Bench Sauna Heater, 240V/2PH, up to 9kW
Brand: EOS Sauna & Spa
SKU: 14-948000
Price: 9096.00 USD
Availability: InStock

$9,096.00 - $9,450.00$12,995.00 - $13,499.00

Estimated to ship:

Call or text anytime 1-844-HYDRO-33 (1-844-493-7633)

LOWEST PRICE GUARANTEE

The EOS Invisio Midi is a discreet space-saving electric sauna heater that installs enclosed beneath the bench, offering reliable, optimized heating for sauna rooms up to 494 cu. ft.

6kW - For sauna rooms from 213 to 280 cubic feet
9kW - For sauna rooms from 313 to 494 cubic feet

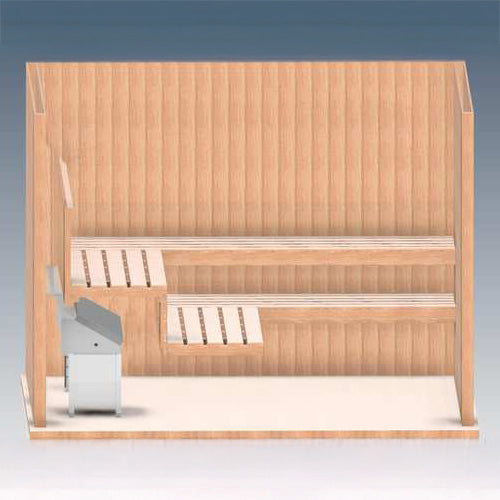

The EOS Invisio Midi electric sauna heater delivers consistent, high-quality heat and steam while its unique design keeps the unit completely hidden from view.

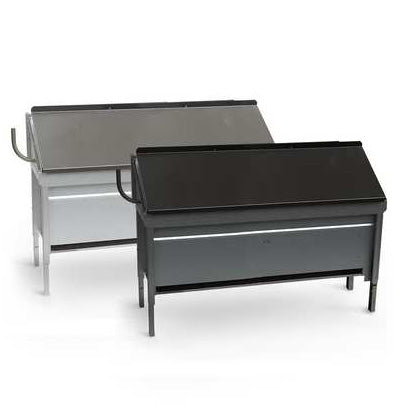

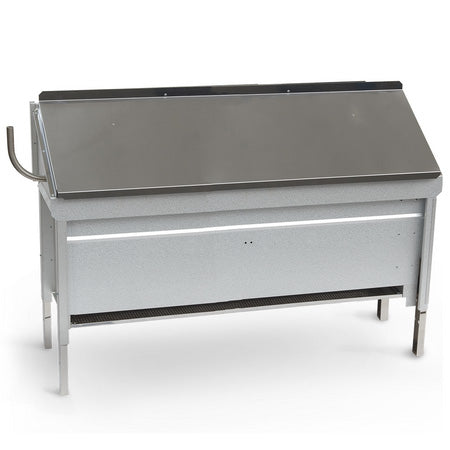

Constructed from a zinc-plated steel shell with stainless steel top, cover and feet, the Invisio Midi's distinct design offers plenty of user benefits. The heating element are configured to provide fast heat-up times so you can swiftly enjoy a luxurious sauna session. The low-profile shape allows installation beneath sauna benches, saving valuable space with only a 4-inch gap to the wall required. Wellness seekers can relax without risking contact with the hot sauna heater.

Water splashes for a steamy sauna experience are still possible using the water infusion feature. Simply pour water into the stainless-steel funnel connected to the heater, where a splash gutter distributes water across the width of the heater to create plentiful steam.

Supported by a 2-year warranty, the Invisio Midi's concealed installation and operation is ideal for wellness enthusiasts who desire a minimalist, spacious sauna interior.

Required Components
The following items are required for the successful operation and installation of this product.

Sauna Heater Controls
EOS Touch 3
EOS EmoTec D

Features

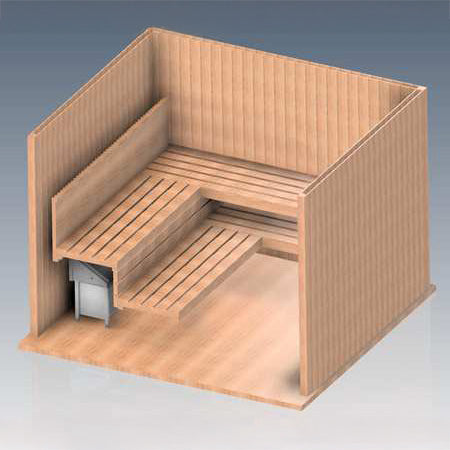

Concealed installation under the benches for high user safety and a spacious sauna interior.
Robust zinc-plated steel shell construction with stainless steel top, cover, and adjustable feet.
Water infusion feature still allows water splashes through a steel funnel to generate steam.
Safety grill reliably protects against objects falling down on the heater.
Special positioning of heating elements optimizes performance for quicker heat-up times.
Designed, engineered and built in Germany.
Compatible with Touch 3 & Emotec D controls (Sold Separately)
Dimensions: 45.7"W (116 cm) x 15"D (38 cm) x 30.3"H (77 cm)
Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)

Includes

Invisio Midi Electric Sauna Heater
4 Adjustable Legs
Trough with Connection Hose
Protective Grill
Stainless Steel Angled Tube
Mounting Material and Warning Plate
Installation and Operation Manual
2-Year Limited Warranty (Consumer Use) and 2-Year Limited Warranty (Commercial Use)

Model	14-947546 / 14-948000
Room Size	213-280 cu. ft.
Wattage Rating	53 lbs (24 kg)
Amperage	15
Weight	53 lbs (24 kg)
Model	14-947547 / 14-948001
Room Size	313-494 cu. ft.
Wattage Rating	9000
Amperage	20
Weight	55 lbs (25 kg)
Model	INVISIO MIDI 240/2
Room Size	213-494 cu. ft.
Voltage	240
Phase	2
Circuit Breaker	See Installation and Operation Manual
Wire Size AWG	12
Safety Listing	CSA (Canadian Standards Association)
Minimum Ceiling Height	74.8" (190 cm)
Minimum Bench Height	63" (160 cm)
Safety Distance (Front to Back)	15.4" (39 cm)
Safety Distance (Left to Right)	50.4" (128 cm)
Stone Capacity	44 lbs (20 kg)
Stone Size	2" to 4" (5-10 cm)
Width	45.7" (116 cm)
Depth	15" (38 cm)
Height	30.3 "(77 cm)
Wattage Rating	7500
Voltage	240
Phase	2
Amperage	40
Wire Size AWG	10
Weight	46.3 lbs (21 kg)
Model	14-947539 / 14-947993
Room Size	313-494 cu. ft.
Wattage Rating	9000
Voltage	208
Phase	3
Amperage	35
Wire Size AWG	10
Weight	47.4 lbs (21.5 kg)
Model	14-947542 / 14-947996
Room Size	313-494 cu. ft.
Wattage Rating	9000
Voltage	240
Phase	2
Amperage	50
Wire Size AWG	8
Weight	47.4 lbs (21.5 kg)
Model	GRACIL W
Room Size	213-494 cu. ft.
Circuit Breaker	See Installation and Operation Manual
Safety Listing	CSA (Canadian Standards Association)
Minimum Ceiling Height	74.8" (190 cm)
Safety Distance (Front to Back)	13.2" (33.5 cm)
Safety Distance (Left to Right)	24.6" (62.5 cm)
Stone Capacity	44 lbs (20 kg)
Stone Size	2" to 4" (5-10 cm)
Width	19.9" (50.5 cm)
Depth	10.8" (27.5 cm)
Height	29.1" (74 cm)

See manual and product data sheet
