EOS Cubo Avantgarde 208/3 Freestanding Electric Sauna Heater, 208V/3PH, up to 12kW
$10,301.00 - $10,529.00$14,715.00 - $15,041.00
Estimated to ship:
Call or text anytime 1-844-HYDRO-33 (1-844-493-7633)
LOWEST PRICE GUARANTEE
The EOS Cubo Avantgarde Sauna Heater features a modern artistic design with a distinctive stylized upper stone basket and is engineered for sauna rooms up to 634 cu. ft.
- 7.5kW - For sauna rooms from 247 to 353 cubic feet
- 9kW - For sauna rooms from 314 to 494 cubic feet
- 10.5kW - For sauna rooms from 387 to 527 cubic feet
- 12kW - For sauna rooms from 494 to 634 cubic feet
The EOS Cubo Avantgarde is a premium electric sauna heater that delivers exceptional performance in a luxurious, ultra-modern design.

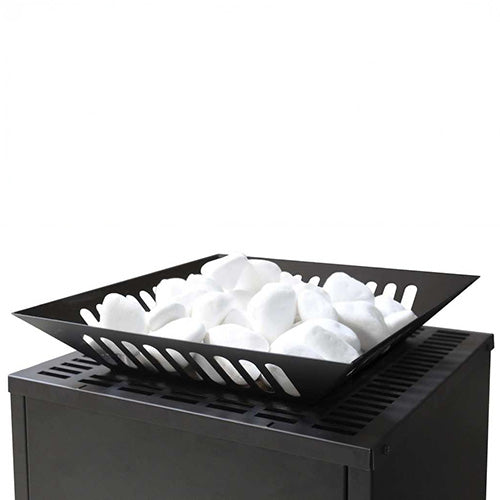

The matte black Cubo Avantgarde is constructed from durable powder-coated steel, which is scratch-resistant to protect its contemporary exterior. With its symetrical dimensions on all sides, the heater complements sauna rooms of any installation configuration. Its distinctive stylized upper stone basket is secured to the top of the heater and cradles decorative white quartz sauna stones for a dramatic visual impact. Layered above the internal diabase sauna stones, the added rocks improve heat retention and increase steam production when water is poured.
Featuring heating elements not directly contacting sauna stones and secure access to wiring connections, the Cubo Avantgarde is extremely efficient and service friendly. Boasting a large rock capacity relative to its compact footprint, the heater optimizes air convection for quick heat-up times, superior performance, and powerful sauna sessions.
Protected by a 2-year warranty, the Cubo Avantgarde offers an exceptional blend of precise craftsmanship and optimized performance to bring your sauna to life.
Required Components
The following items are required for the successful operation and installation of this product.
Sauna Heater Controls
EOS Touch 3
EOS EmoTec D
Features
- Freestanding powder-coated steel design with a scratch-resistant matte black finish.
- Stylish rock store extension with white quartz stones for more intense steam production.
- Uniform appearance on all sides for flexible placement options.
- Robust, durable and service-friendly construction.
- Designed, engineered and built in Germany.
- Compatible with Touch 3 & Emotec D controls (Sold Separately)
- Dimensions: 15.7"W (40 cm) x 15.2"D (38.5 cm) x 28.3"H (72 cm)
- Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)
Includes
- Cubo Avantgarde Electric Sauna Heater
- Diabase Sauna Stones
- Rock Store Frame
- White Quartz Sauna Stones
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 2-Year Limited Warranty (Commercial Use)
|
Model
|
14-947523 |
| Room Size | 247-353 cu. ft. |
| Wattage Rating | 7500 |
| Amperage | 30 |
|
Model
|
14-947524 |
| Room Size | 314-494 cu. ft. |
| Wattage Rating | 9000 |
| Amperage | 35 |
|
Model
|
14-947525 |
| Room Size | 387-527 cu. ft. |
| Wattage Rating | 15000 |
| Amperage | 20 |
|
Model
|
14-947526 |
| Room Size | 494-634 cu. ft. |
| Wattage Rating | 12000 |
| Amperage | 25 |
|
Model
|
CUBO AVANTGARDE 208/3 |
| Room Size | 247-634 cu. ft. |
| Circuit Breaker | See Installation and Operation Manual |
| Voltage | 208 |
| Phase | 3 |
| Safety Listing | CSA (Canadian Standards Association) |
| Wire Size AWG | 12 |
| Minimum Ceiling Height | 74.8" (190 cm) |
| Safety Distance (Front to Back) | 19.9" (50.5 cm) |
| Safety Distance (Left to Right) | 20.5" (52 cm) |
| Stone Capacity | 77 lbs (35 kg) |
| Stone Size | 2" to 4" (5-10 cm) |
| Width | 15.7" (40 cm) |
| Depth | 15.2" (38.5 cm) |
| Height | 28.3" (72 cm) |
| Weight | 62 lbs (28 kg) |
See manual and product data sheet
