K-28209

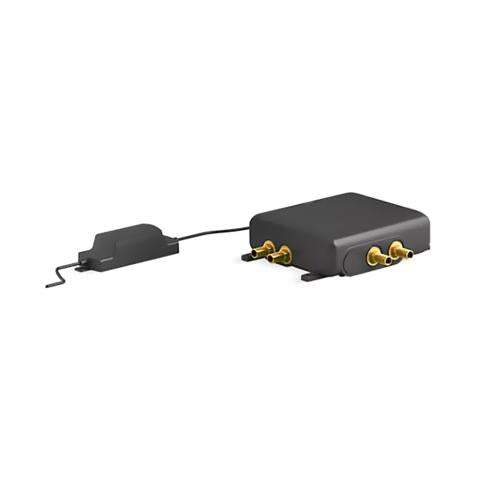

Kohler Anthem, 2-port Digital Thermostatic Valve K-28209
$1,070.40$969.00
Estimated to ship:
Call or text anytime 1-844-HYDRO-33 (1-844-493-7633)
LOWEST PRICE GUARANTEE
Digital thermostatic technology provides accurate, precise and consistent temperature and flow control in your showering system. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the Anthem digital control. Its easy plug-and-play design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required. Optional built-in eco mode lets you use just one outlet at a time to conserve water.
Required items sold separately
Features
- Digitally controlled thermostatic mixing valve.
- Antiscald protection.
- Built-in temperature and flow control.
- Conserve water by enabling built-in eco mode, which limits use to only one outlet at a time.
- Up to 12 gpm (45.4 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet.
- Two independently controllable ½" outlets with brass tube connections.
- 1/2" inlets with brass tube connections
- Reinforced engineering-grade thermoplastic body.
- Mounts within standard 2" x 4" (38 x 102 mm) walls.
- Prewired with two-prong plug for connection to 120v GFCI receptacle.
Package Includes
- Digital Thermostatic Valve
- Filter Screens (2)
- Jumper
- Mounting Hardware
- Power Supply Unit
| Model | K-28209 |
|---|---|
| Mount | Wall |
| Material | Reinforced engineering-grade thermoplastic body |
| Minimum Flow Rate | 0.9 gal/min |
| Maximum Flow Rate | 9.5 gal/min |
| Volts | 120V |
| Amperage | 1.0 |

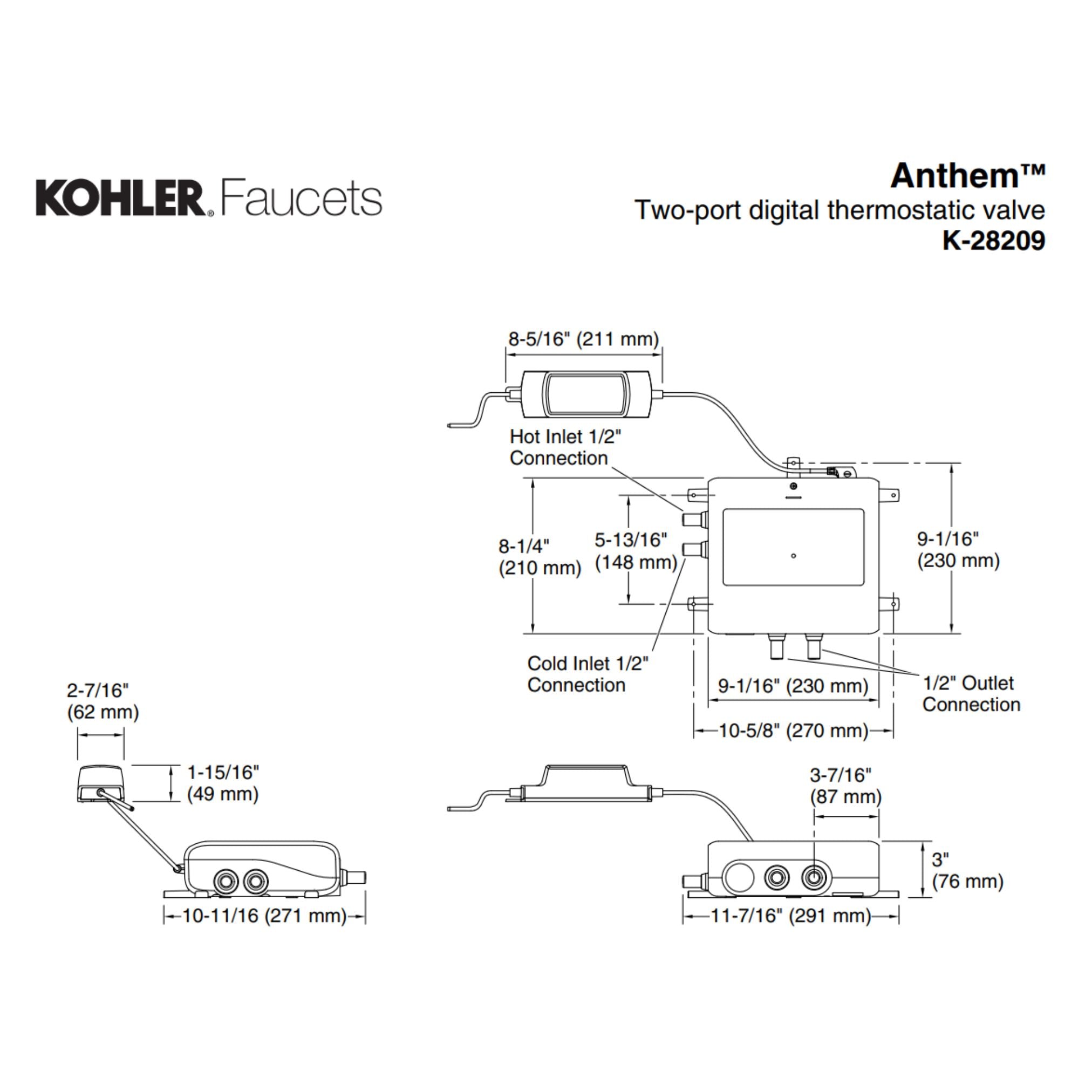

| Width | 10-5/8" |
| Depth | 9-1/16" |
| Height | 3" |
See manual and specification.
See service parts.
See warranty.
REQUIRED FOR OPERATION
Control
Kohler K-28214
