Yardistry 10' x 10' Meridian Pavilion YM11909COM

Give yourself even more outdoor living space or cover your backyard spa with Yardistry's 10’x10’ Meridian Pavilion!

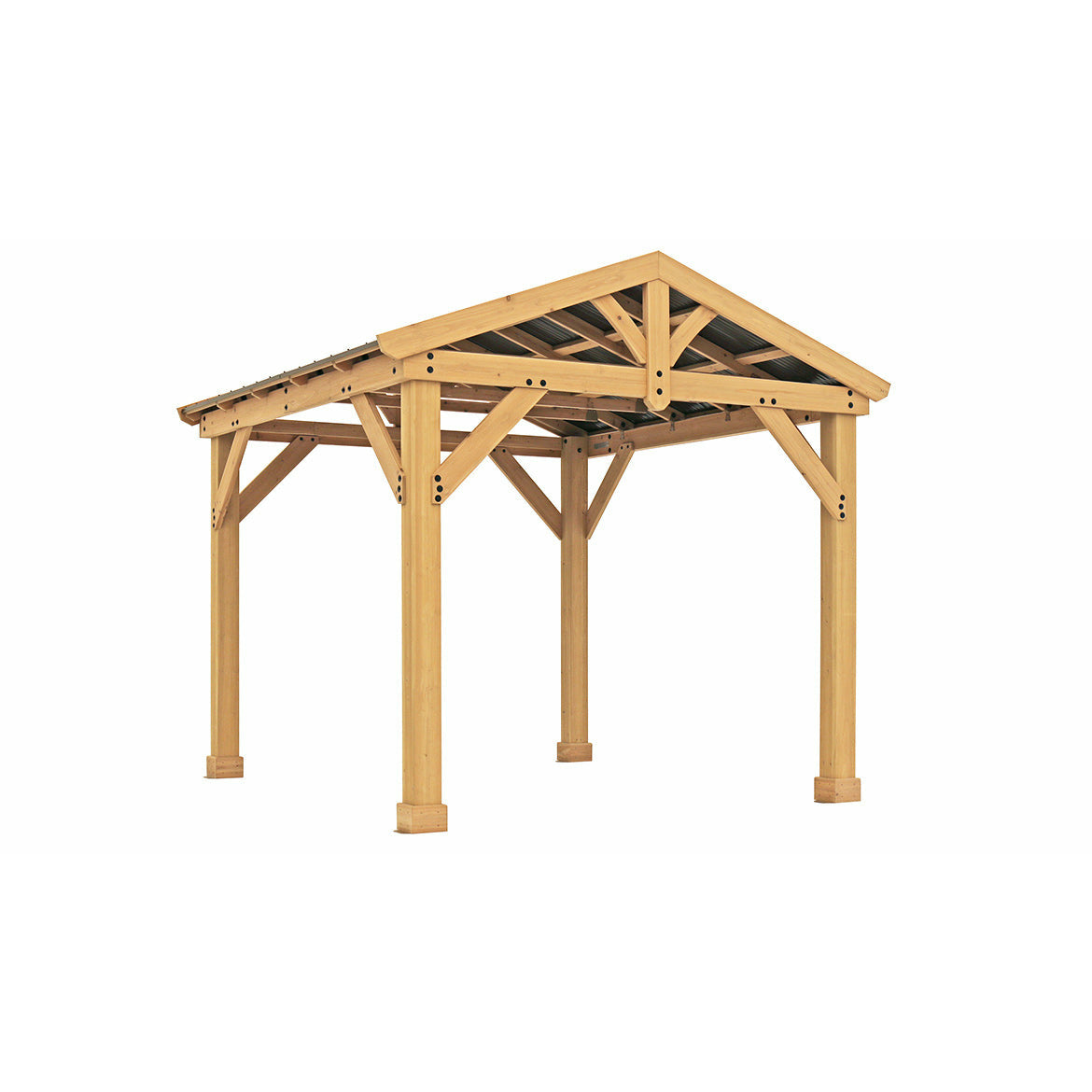

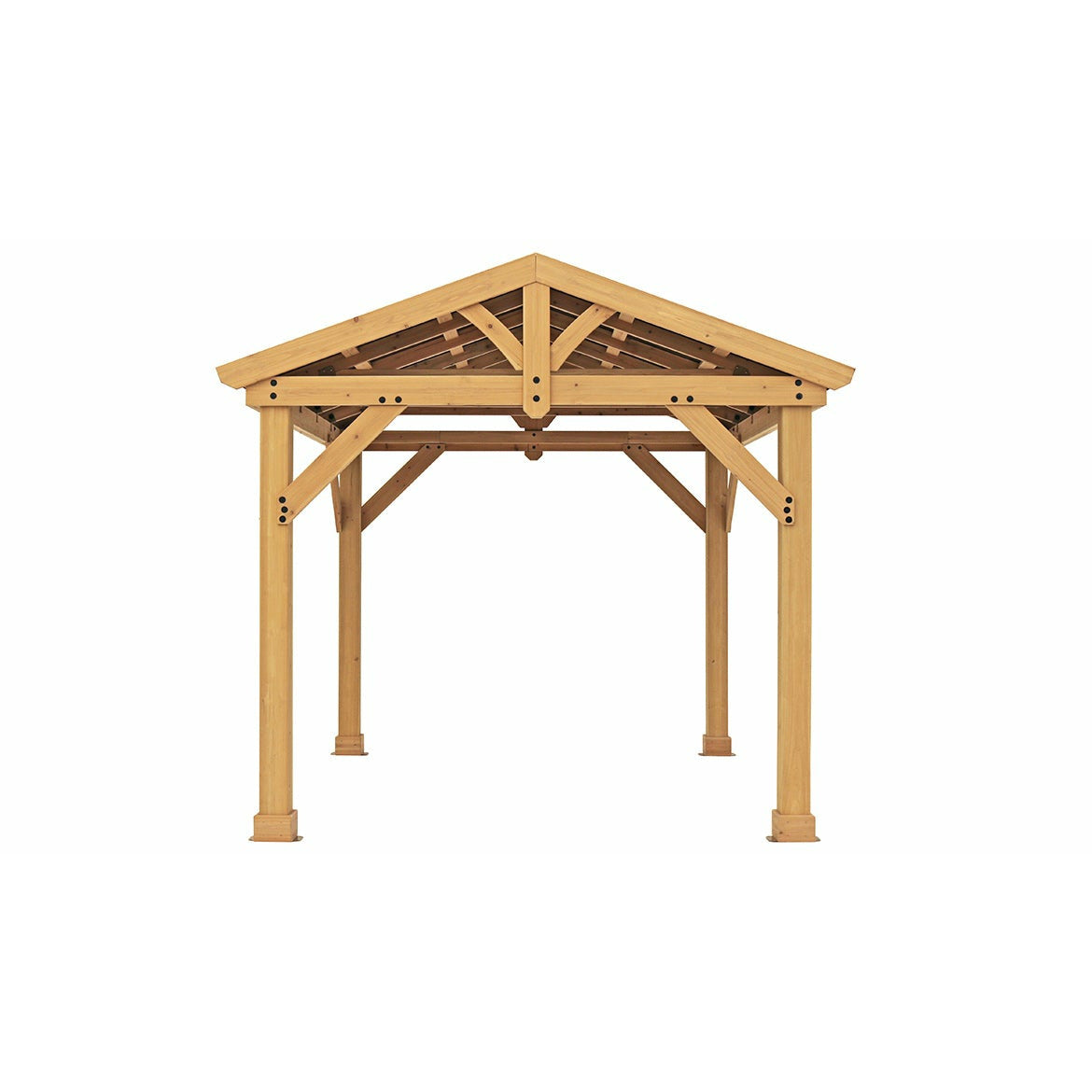

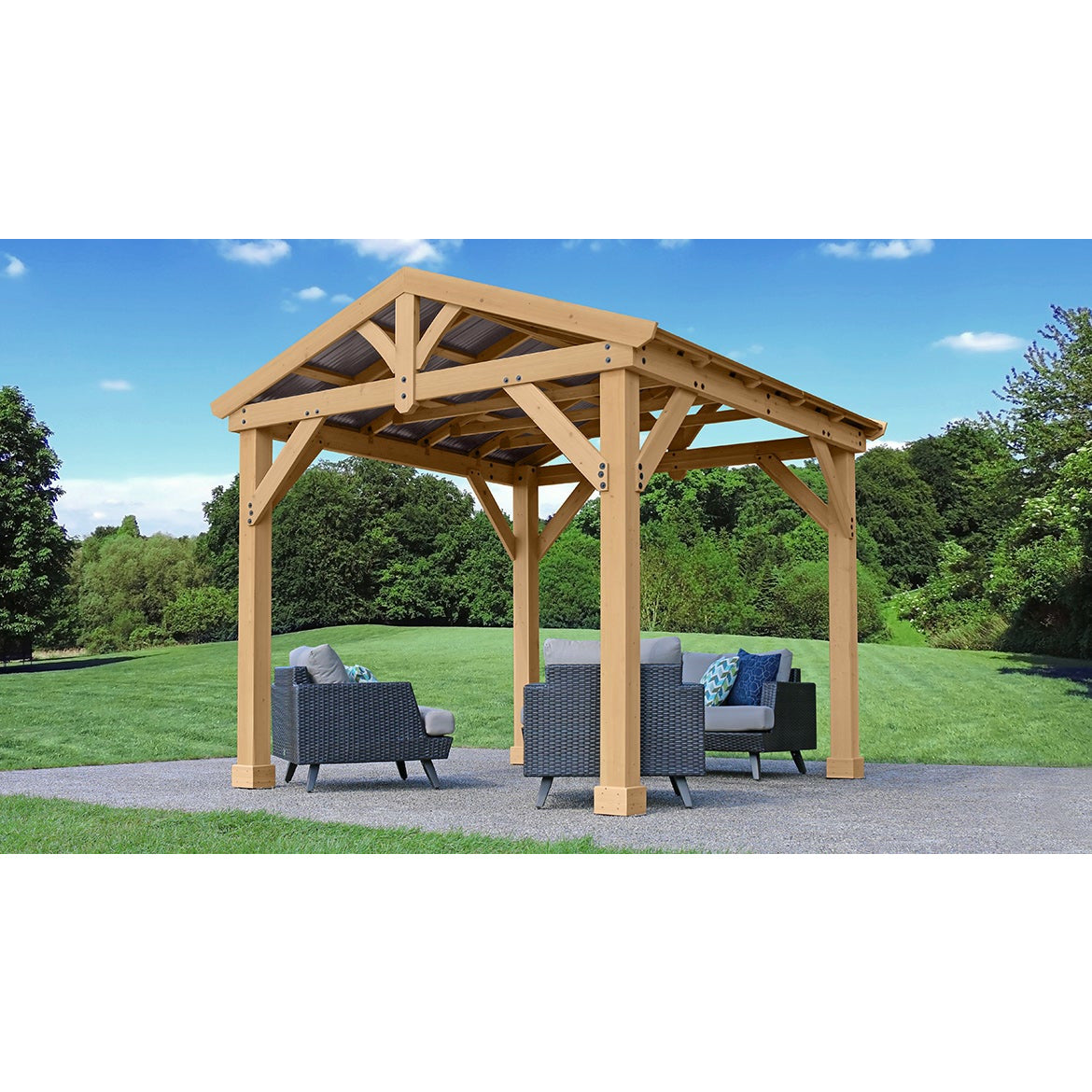

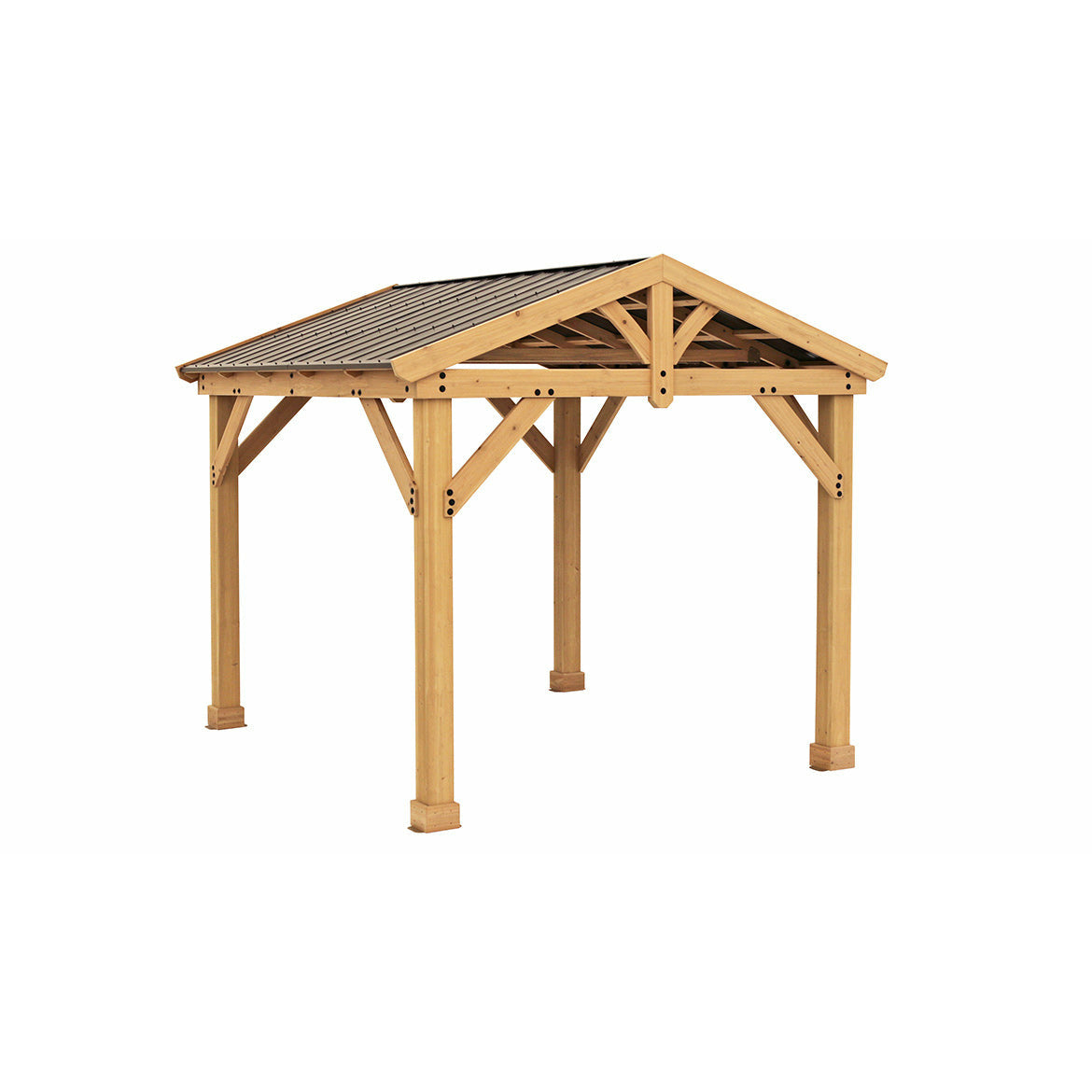

Full of character, the Meridian Pavilion is the perfect setting for all your outdoor entertaining.  Built with 100% premium Cedar lumber and finished in a Natural Cedar stain, the design features a gorgeous coffee brown aluminum roof. At 10 feet by 10 feet, the sturdy structure can accommodate most outdoor furniture sets.

The pavilion comes ready to assemble with all wood pre-cut, pre-drilled, and pre-stained. It includes all necessary hardware and simple-to-follow illustrated instructions.

Backed by a 5-year Limited Warranty, the 10’x10’ Meridian Pavilion will instantly transform your outdoor space into a sophisticated modern oasis

Features:

• Coffee Brown aluminum roof

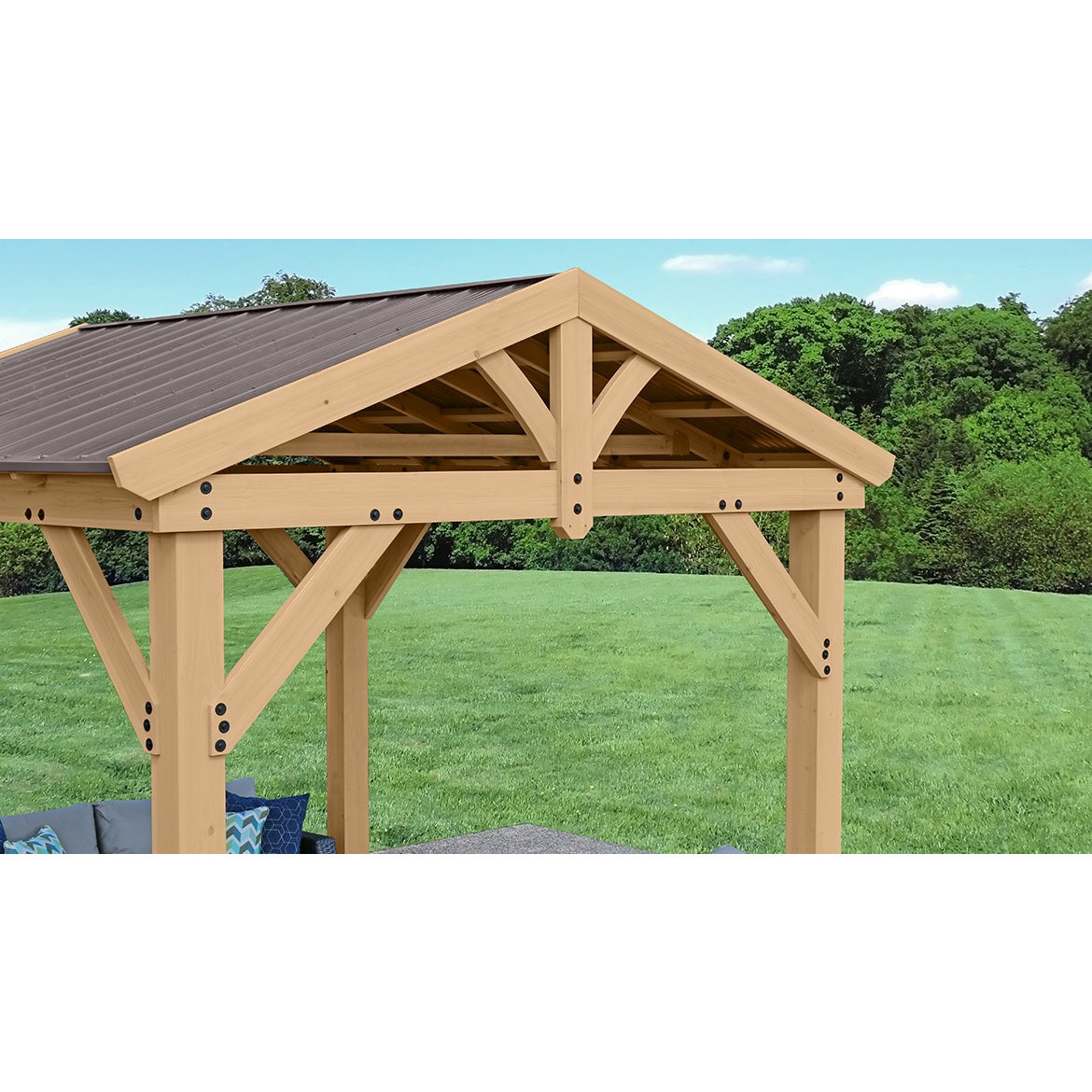

• Premium gable roof design

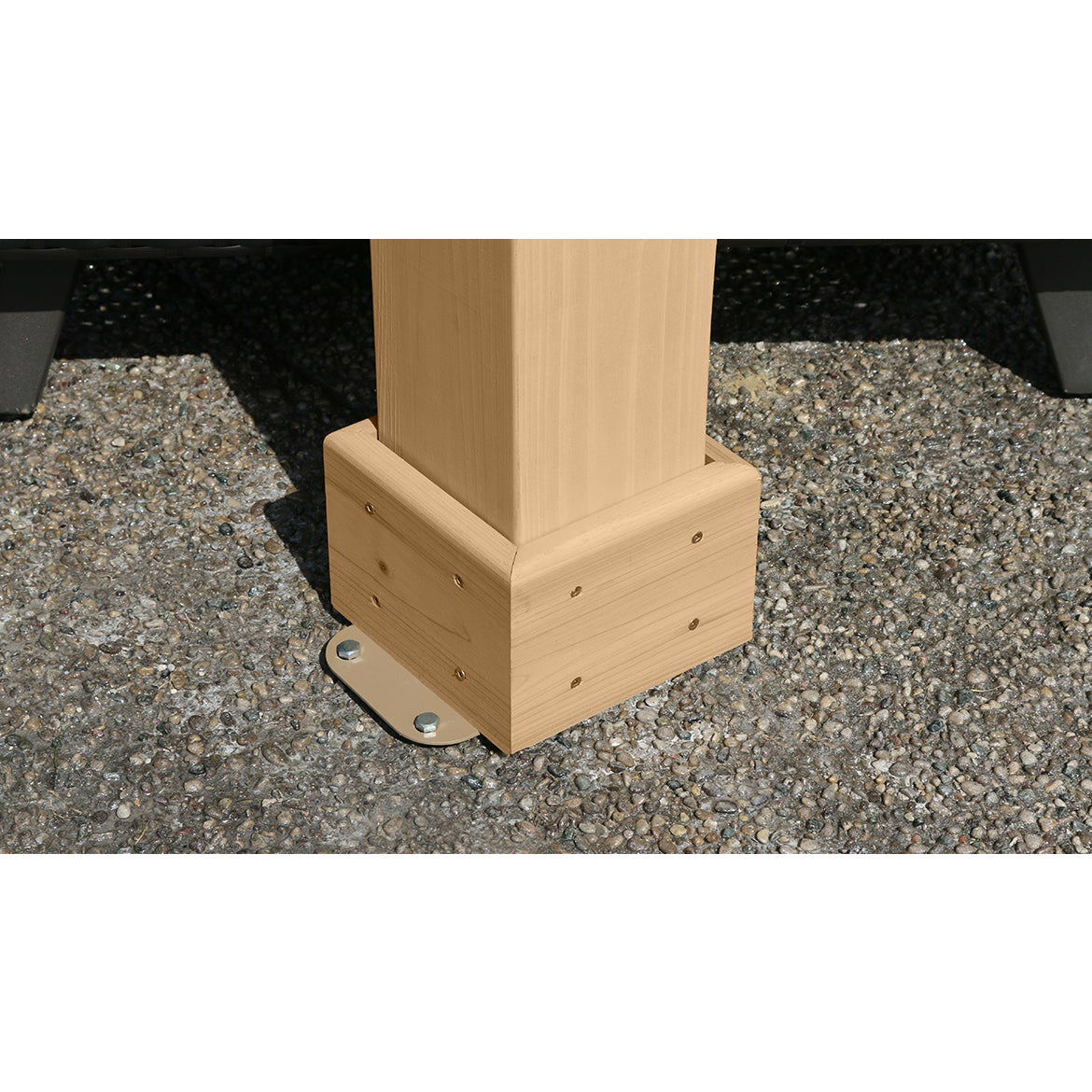

• 6” x 6” Posts with plinths
• Sleek straight-line gussets
• Finished in a Natural Cedar stain

Constructions and Dimensions:

• Built with 100% premium Cedar lumber
• Pre-cut, pre-drilled, and pre-stained lumber
• Lumber comes pre-finished in a Natural Cedar stain color

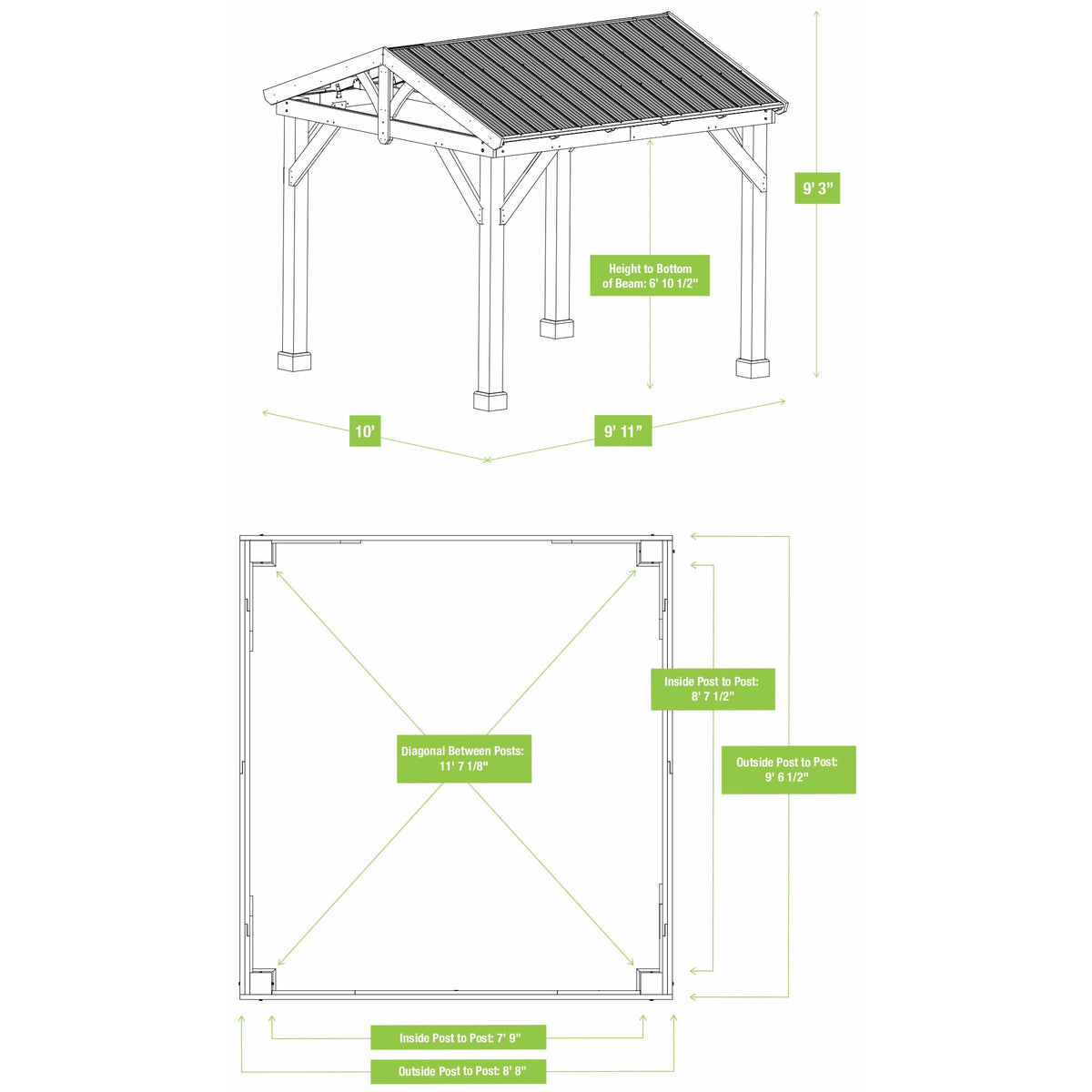

• Overall Dimensions: 10’ L x 9’ 11” W x 9’ 3” H
• Base Dimensions (outside post to outside post): 9’ 6 ½” x 8’ 8” W

Box Dimensions:

• Box 1: 89-1/2" L x 36" W x 4-3/8" H = 135 LB.*
• Box 2: 89-1/2" L x 17-3/4" W x 9-3/4" H =150 LB.*
• Box 3: 89-1/2" L x 17-3/4" W x 9-3/4" H =165 LB.*

^{*Disclaimer. Precise weight may vary due to moisture content.}

See English manual.

• The product comes as a ready to assemble kit with all wood pre-cut and includes all hardware and metal components
• The illustrated step-by-step instruction manual is included
• Helpful Hints video to guide you through the most critical steps

Preparing For Installation

Prior to installation, there are a few things you can do to help make the assembly process easier.

1. Plan and prepare your location

Check with your local municipality for setback requirements/regulations that are necessary for your area. If you are planning on using footings, click here for a detailed footing drawing.

2. Review the manual

Read through the step-by-step illustrated instruction manual prior to installation. When the product arrives, you can find the Instructions in the box or you can download a copy above.

3. Complete your Inventory

To minimize installation time, complete your inventory prior to assembly. Use the stamped codes and parts ID pages in your instruction manual to organize and sort the parts. A half-hour now can save a lot of time throughout the installation! If you are planning on using an installer to build your Yardistry product, doing an inventory before they arrive will help eliminate any delays! If you find that you need anything be sure to contact our Customer Experience Team or complete a parts replacement form.

Anchoring
