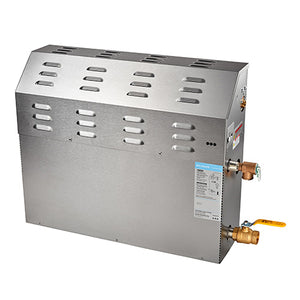

Improving on the popular MS Super 4E, the 20kW MX4E home steam shower generator is designed for residential and day spa steam rooms up to 678 adjusted cubic feet (ACF).
Required control package sold separately.
The MS MX4E steam shower generator is constructed of durable stainless-steel throughout for years of safe, reliable, and efficient operation. The unit includes industrial-grade heating elements, a stainless-steel tank, ASME safety valve, electronic water-level control system, and a variety of other features.
Mr. Steam MX Series generators are engineered to provide the most consistent steam bathing experiences. The MX4E features the latest in steam bath technology and runs off an advanced microprocessor platform. The steam unit includes LED color indicators for easy-to-read self-diagnostics.
The MX4E generator features modular plug and play so that you may easily install steam shower accessories such as AromaTherapy, ChromaTherapy, and SteamLinx for a multisensory bathing experience.
The Mr. Steam MX4E 20kW steam generator is available in 240V single-phase (1PH) configurations. Mr. Steam MS-e Series generators are available in a variety of power ratings to best suit your needs.
The compact size of the generator allows the unit to be installed conveniently out of sight up to 60 feet away from the steam room. Typical installation locations include closets, vanities, and closets. The unit is perfect for any home steam shower kit.
The optional Express Steam feature is equipped with a built-in thermostat that maintains tank water temperature so that you may start steaming quickly.
The Mr. Steam MX4E generator requires the use of a Mr. Steam control or control package for operation. MS-e Series generators are compatible with all Mr. Steam controls and with the Steamlinx mobile app. Select the available control with features that best suit your bathing preference.
We recommend the available Mr. Steam AutoFlush Drain System with your MX4E steam shower unit. The Auto Drain automatically drains the generator tank after each use to help prevent sediment build-up and to ensure the best performance of the unit.
The MX4E steam bath generator is fully serviceable and carries a limited lifetime warranty. Mr. Steam MAX Series generators are US and Canadian UL listed and CE and NOM certified for your safety.
Features
- For steam baths sized from 483 to 678 adjusted cubic feet
- Available in 240V operation
- Stainless Steel tank
- Industrial-grade, serviceable heating element
- MiniDIN control connections
- Available Auto Drain automatic draining system
- Durable electronic components
- Electronic water-level control system
- Low-voltage safety control circuits
- Solid-state circuitry
- Diagnostic LED Displays
- Full port drain valve
- ASME safety valve
- UL/CUL/NOM/CE Listed
Includes
- 20kW Steam bath generator, 27-5/8" x 20-3/4" x 7-7/8"
- Installation and operation manual
- Limited warranty
| Model |
MS MX4E |
| Minimum Adjusted Cubic Feet |
483 |
| Maximum Adjusted Cubic Feet |
678 |
| Shipping Weight (Lbs.) |
67 lbs |
| Kilowatt Rating (KW) |
20 KW |
| Electrical Specifications |
(Refer to Installation Manual) |
| Water Supply Connection |
3/8" NPT |
| Generator Steam Line Connection |
3/4" NPT |
| Steam Head Connection |
1/2" NPT |
| Drain Connection |
1" NPT |
| Safety Relief Valve Connection |
3/4" NPT |
| Safety Relief Valve PSIG |
15 PSIG |
| Control "Rough In" Cut Out |
1" |
| Generator Control Connection |
8-Pin Mini-DIN Connector |
| Generator Control Cable |
30', 8 Conductor, 24 AWG, Shielded Cable |
| Width |
27-5/8" |
| Depth |
7-7/8" |
| Height |
20-3/4" |
REQUIRED FOR OPERATION
Mr.Steam MSITPLUS, Mr.Steam AIRT, Mr.Steam MSBUTLERX, Mr.Steam BTLRLX, Mr.Steam ABUTLERX, Mr.Steam ABTLRLX, Mr.Steam I3DREAMX
RELATED ITEMS
Steam Bath Generator Installation Materials
Mr.Steam 103937, Mr.Steam 104040, Mr.Steam MSTS, Mr. Steam IMSTS, Mr.Steam 104402, Mr.Steam 104232 AirTempo Flush Mount Kit
Chromatherapy
Mr.Steam MSCHROMA-72
Shower Seats
Mr.Steam MSWSEAT
Secondary Steam Bath Generator Controls
Mr.Steam STEAMLINX
Steam Bath Aromas
Mr.Steam MS-OIL
Steam Bath Aroma Pump Systems
Mr.Steam MS AROMA
See general installation guide, manual and specification.
See planning guide, benefits brochure and steam benefits brochure.
See warranty.
