CX0360AB1

Mr. Steam CX Steam Shower Generator Package, 9kW through 24kW

Generator Size
Voltage & Phase

Estimated to ship:

Call or text anytime 1-844-HYDRO-33 (1-844-493-7633)

LOWEST PRICE GUARANTEE

The Mr. Steam CX Generator Package is the next generation of steam power. Ideal for large health club and spa facilities, the CX Generator Package is designed for steam rooms with dimensions up to 1,000 cubic feet (CF).

The CX Generator is engineered for peak performance and offers quieter power, ease of installation, and an advanced touch-screen control.

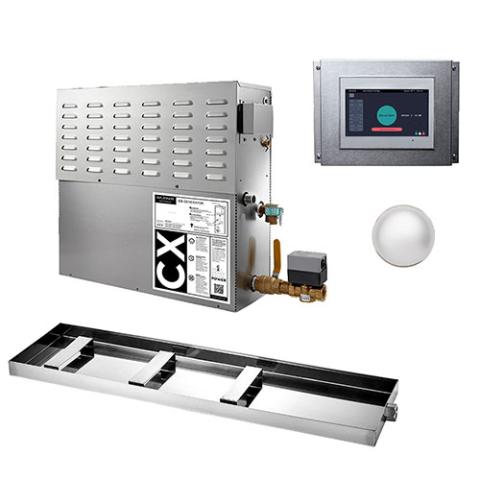

You get everything you need to create the perfect steam experience with the combination of a CX Generator, CX Control, Commercial SteamHead, Condensation Pan, and a factory-installed AutoFlush System. The result is a touchpoint experience that becomes memorable, revitalizing, and ultimately more gratifying.

OPTIONAL FEATURES

  • CX0360 - 9kW rooms up to 360 cubic feet
  • CX0500 - 12kW rooms 316 - 500 cubic feet
  • CX0600 - 15kW rooms 501 - 600 cubic feet
  • CX0800 - 20kW rooms 601 - 800 cubic feet
  • CX1000 - 24kW rooms 801 - 1,000 cubic feet

FEATURES

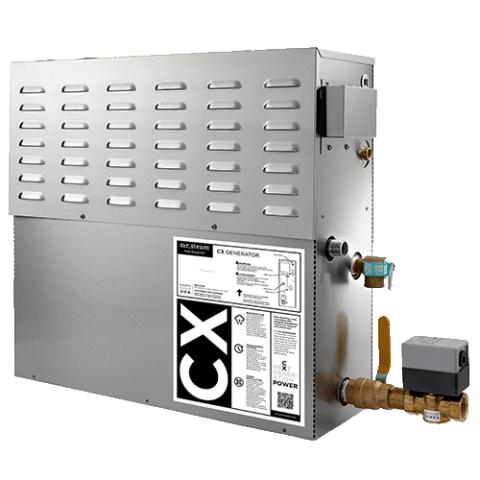

CX Generator

  • Industrial-grade, large diameter, serviceable heating element
  • Electronic water-level control system
  • Stainless steel jacket prolongs life
  • Quieter than a pressurized system
  • Program to preheat the steam room at the start of each day
  • Internal temperature shut-off to prevent low water conditions and integral high water cut-off

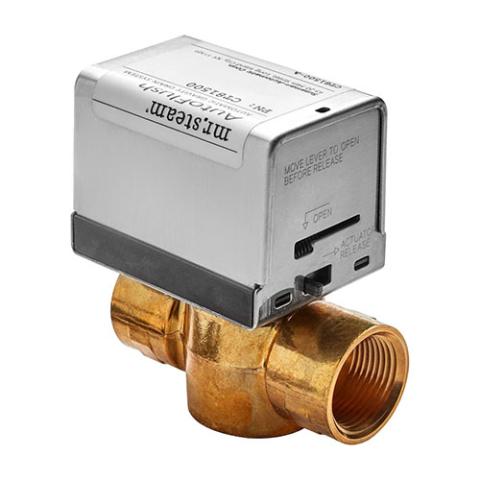

  • Factory installed AutoFlush System flushes old water and impurities promoting a healthy life for generators
  • Compact size offers more flexibility with room design and straightforward installation
  • All units are wired and pre-tested before shipping to assure all parts of the generator are working perfectly
  • Designed for commercial applications that require continuous or near continuous use so they are available to use all day
  • Dimensions: 33.9"L x 7.9"W x 22"H (including factory-installed AutoFlush System)

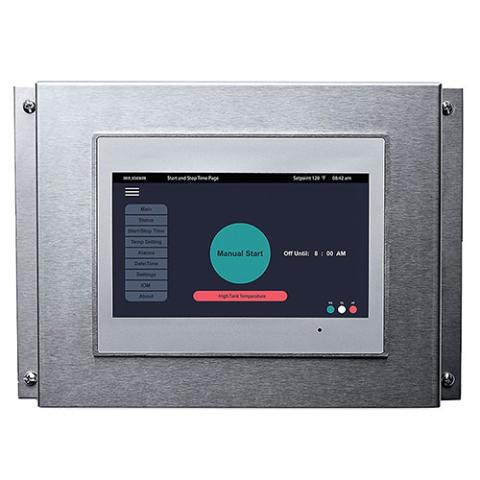

CX Control

  • 7” color touch screen control with menu driven user interface
  • Easily set on/off time and view system status while the unit is running
  • Controls multiple CX Generators in series
  • Dimensions: 7.1"L x 1.6"W x 5.3"H

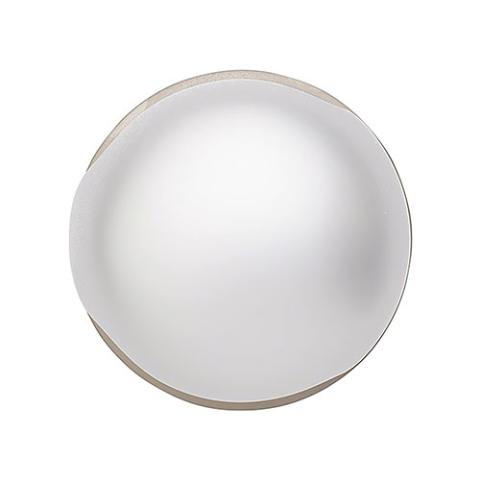

Commercial SteamHead

  • Complete with polycarbonate Acrylic Shield
  • Comes in a Polished Chrome finish
  • No assembly of moving parts required
  • Dimensions: 3.1”Diameter x 1.8”W

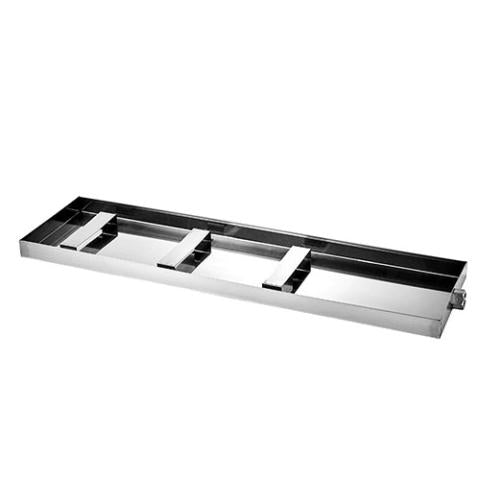

Condensation Pan

  • Protects against potential water leaks
  • Will trap and redirect the water to a predetermined area
  • Goes on a solid level surface with steam generator placed inside
  • Dimensions: 33"L x 1.5"W x 9"H

INCLUDES
CX Generator

  • CX Generator
  • Installation and Operation Manual
  • 1-Year Limited Warranty

CX Control

  • CX Control
  • 1-Year Limited Warranty

Commercial SteamHead

  • Commercial SteamHead
  • 1-Year Limited Warranty

Condensation Pan

  • Condensation Pan
  • 1-Year Limited Warranty

Model

CX0360-CX1000

Construction Material

Stainless Steel

Installation Type

Hardwired

Kilowatt Rating

9kW-24kW

Wattage

9000-24000

Water Supply Connection

3/8" NPT

Drain Connection

1" NPT

Safety Valve Connection

3/4" NPT

Minimum Cubic Feet

0

Maximum Cubic Feet

1000

Product Dimensions

33.9"L x 7.9"W x 22"H (including factory-installed AutoFlush System)

Shipping Weight

60 lbs

CX Control



Product Dimensions

7.1"L x 1.9"W x 5.3"H

Commercial SteamHead



Product Dimensions

3.1"Diameter x 1.8"Depth

Condensation Pan



Product Dimensions

33"L x 1.5"W x 9"H
