CU1-D1

Mr. Steam Digital 1 Control Package with Digital 1 Control and CU SteamHead in Polished Chrome CU1-Digital1 - CU1-D1

Call or text anytime 1-844-HYDRO-33 (1-844-493-7633)

LOWEST PRICE GUARANTEE

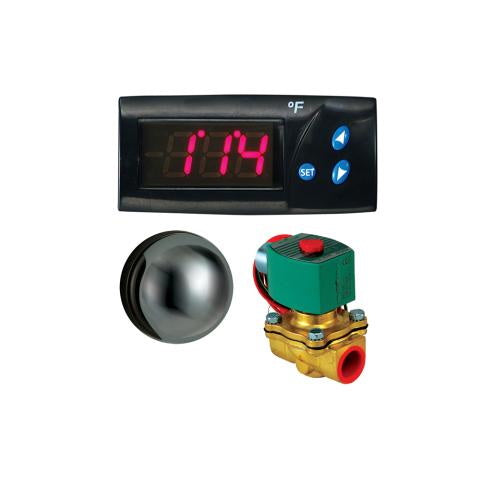

The boiler-mounted Mr. Steam CU1-Digital1 room temperature control allows facility operators to set and maintain a 100-120-degree steam room temperature range. The CU1-Digital 1 includes a Digital 1 Operating Control with a sensor guard, a ¾” Steam Solenoid Valve, a ¾” Steam Head and operates with the Mr. Steam CU360-CU1400 steam room boilers.

The CU1-D1 digital temperature controller features a high limit shut-off to prevent overheating of the boiler and steam on-demand for consistent room temperatures.

Note: The Mr. Steam CU1-Digital1 is for new boilers only, to upgrade your F1 control, see the CU-104066 Field Kit.

FEATURES
  • Digital operation
  • High-limit-shut-off
  • Digital 1 Temperature Control featuring in-steam-room temperature-regulating sensor
  • Advanced low mass, quick-response thermostat with sensor guard and integrated in-steam-room high temperature control
  • Electronic temperature control factory pre-installed with panel-mount design
  • Efficient, consistent control with a full 80 °F - 120 °F range
  • Plate for optional remote installation in a standard 4x4 electrical box
  • Important: If more than one room is being serviced by one CU generator, the appropriate CU1- Digital 1 Package must be specified for each room
  • For use with CU360-CU1400 generators
Installation Type

Hardwired

Package Includes

  • Digital 1 operating control
  • Digital 1 sensor w/ 30' sensor cable
  • Digital 1 sensor cover
  • 3/4" NPT steam head
  • Acrylic shield
  • 3/4" Solenoid valve
  • Installation and operation manual
  • Limited warranty
Model CU1-Digital1
Shipping Weight 15 lbs.
See manual and specification.
See planning guide, benefits brochure and steam benefits brochure.
See warranty.
